EZ Innovation Project Portfolio
Product Tooling Drawings
Year: 2023
Client: Mantec Services
​
EZ Innovation assisted Mantec Services by developing manufacturing drawings for one of their product offerings. Our responsibilities included: physically reviewing the product tooling at Mantec's facility, developing a 3D CAD model of the tool, and associated 2D manufacturing drawings with applicable tolerances.
Click Here to learn more about Mantec's Safety Bumpers.
Mechanical Design & Analysis
Year: 2023
​
Client: Intelliport Corporation
​
The OmniTruck is a heavy lifting transportation device, ideal for moving large equipment inside confined spaces due to the patented omni wheel lifting technology (click to learn more about the OmniTruck). EZ Innovation responsibilities for product success involved: mechanical design (assembly & various individual parts), assembly stress analysis (for max load capacity validation), and product/assembly documentation (3D model generation & 2D manufacturing drawings with applicable tolerances).
EZ Headset Holder
Year: 2022
​
EZ Innovation Product
​
The EZ Headset Holder is a quick install design developed for pilot headset storage. Simply use the suction cup to mount the single or dual EZ Headset Holder to the wind-screen, and hang your headset for a clutter free storage solution (whenever the headset is not in use).
Click Here to purchase!
2D Manufacturing Drawings
Year: 2022
​
Client: Charley's Greenhouse
​
Standardized drawings are required for constructing and assembling greenhouses. The customer requested to have their current drawings updated with additional detail for their most popular greenhouse. EZ Innovation was able to review the previous drawings and develop 3D models for the whole greenhouse assembly. 2D drawings were produced as a result of the 3D models. The 2D drawings were finalized and delivered to the customer in PDF format.
_edited.jpg)
Stop Turn Fitting
Year: 2022
​
EZ Innovation Product
​
​
Originally developed for the aviation industry, the Stop Turn Fitting (ST Fitting) is designed to the ease the installation of bulkhead AN fittings. Prior to the ST Fitting, AN fitting installation required two people (one person to tighten the fitting on the engine side of the firewall and one person to keep the fitting from freely spinning on the cabin side of the firewall). The ST Fitting now allows for a single person to easily install and tighten a bulkhead AN Fitting within minutes!
​
Click Here to see the product in use!
​
Click Here to purchase!

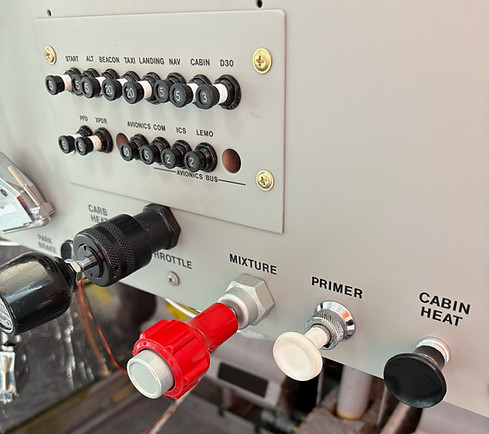

Custom Instrument Panel
Year: 2022
​
EZ Innovation Product
​
EZ Innovation's COO & Chief Engineer is a proud owner of a GlasAir 1. During the restoration process, our Chief Engineer needed a new instrument panel in order to complete the build. EZ Innovation utilized 3D CAD software to configure custom gauge and aviation component placement. A DXF file was developed and loaded into a laser cutter to manufacture the custom instrument panel for the GlasAir 1.
​
Click Here to purchase your own Custom Instrument Panel!
